| Item | Web Guide | Model | WG300 |
|---|
DESCRIPTION

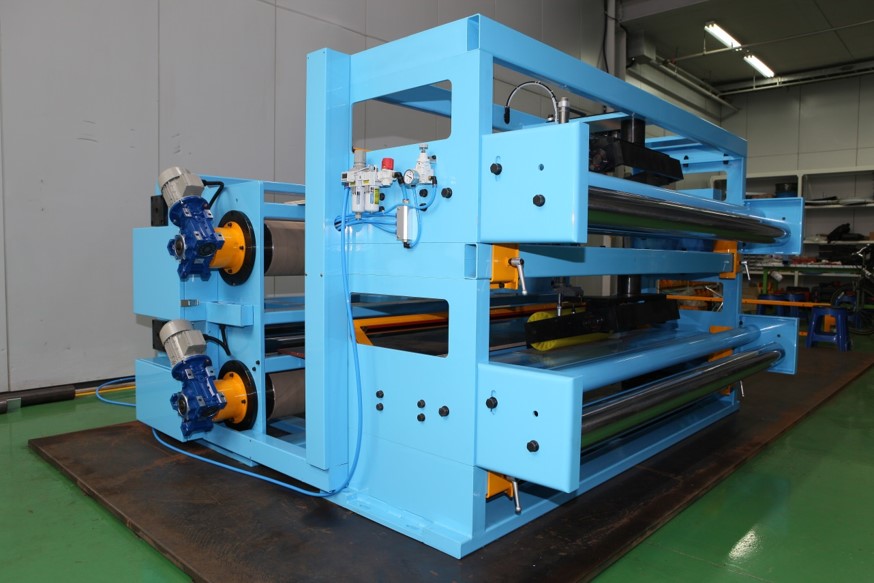

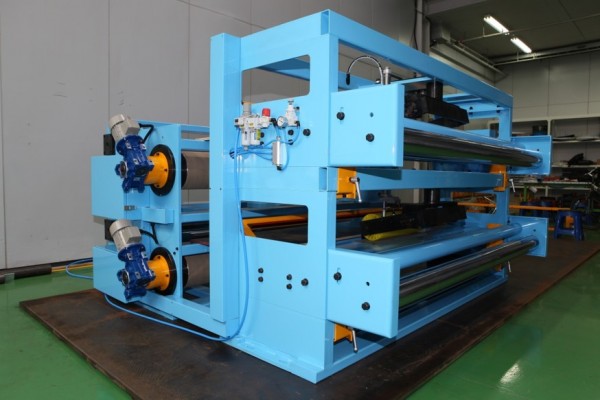

Web Guide (OP Side)
1. MAIN FUNCTION OF WEB GUIDE

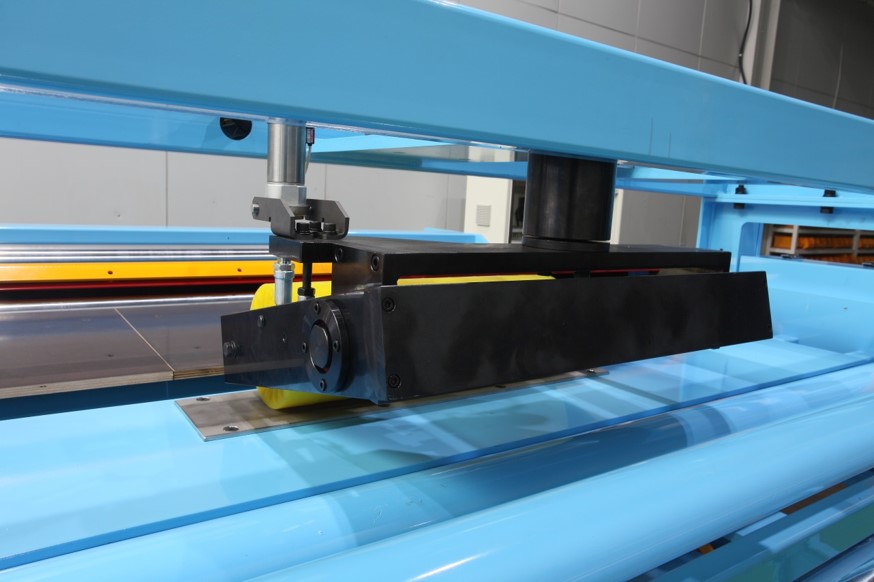

1) Self detection of paper center by installing a paper width detecting sensor
2) Tension control by installing a Re Brake
3) Auto tension control by installing a Load Cell
4) Easy inserting paper by installing a motor installed One Way bearing
5) Manual mode if there is a control problem

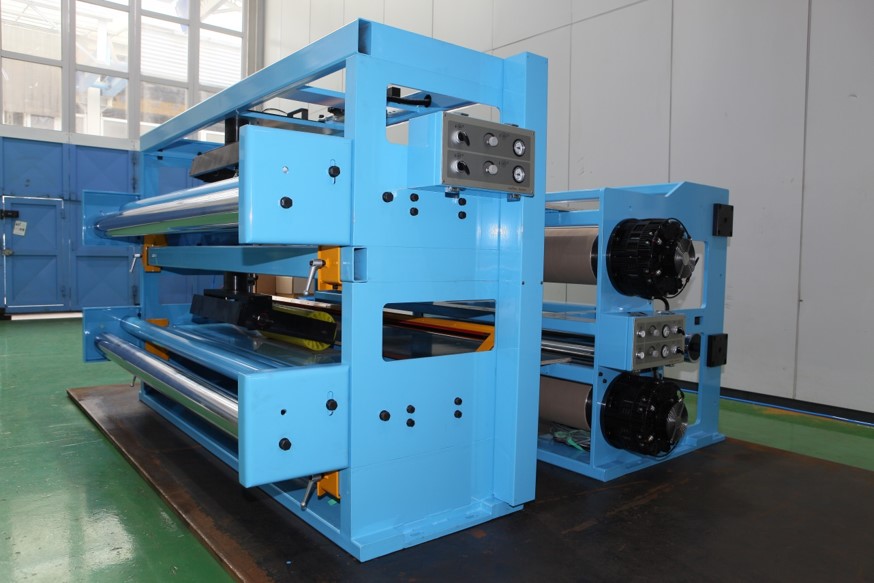

Web Guide (Drive Side)
2. SPECIFICATION OF WEB GUIDE (TWO DECKS)
1) Width of paper : 1800 mm (Max. : 1920 mm)
2) Max. speed of production : 400 m/min
3) Tolerance of Control : ± 2 mm
4) Max. tension of paper : 90 kg/m
5) Machinery Dimension : Length : 2400 mm
Height : 1520 mm
Width : 2300 mm
(including brake & motor : 2800 mm)
